RAM85 pulverizer disc/ring mill 5000

pulverizer disc / ring mill 5000

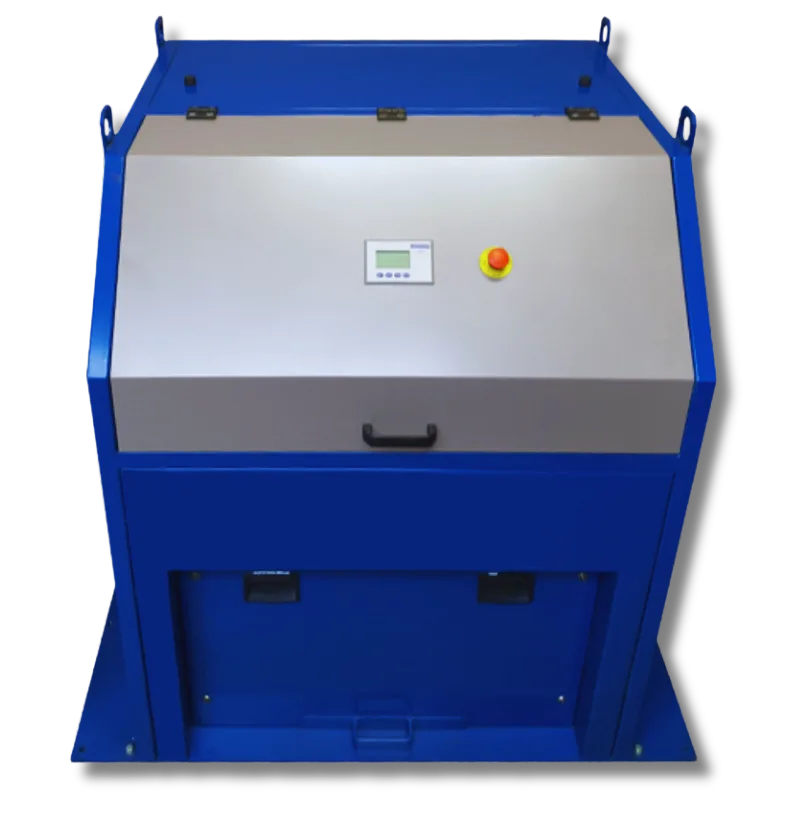

The RAM85 Pulverizer Disc/Ring Mill 5000 is a high-performance grinding solution for pulverizing and homogenizing hard and brittle materials in both dry and wet states. It achieves precise particle sizes down to ≤ 75 μm, making it ideal for laboratory and industrial use. With a robust design and eccentric weight-driven motion, it ensures efficient processing and complete sample recovery. Featuring customizable grinding elements and a 3500 cc sample capacity, the RAM85 is perfect for material testing and milling applications across various industries.

• Max. Milling Cup Volume: 3500 cc
• Final Fineness: ≤ 75 μm
• Filling Capacity: 3500 cc of sample material (optimum)
• Milling Time Adjustment: Digital timer, 5 sec – 99 min, adjustable in 1 sec steps (below 10 min) or 10 sec steps (above 10 min)
• Operation Principle: Horizontal circular motion driven by eccentric weight
• Noise Emission: 70 dB(A) (without milling bowl)
