RAM3585 press filter system

Promotional Video

You can compare the changes and quality achieved after application side by side.

press filter system

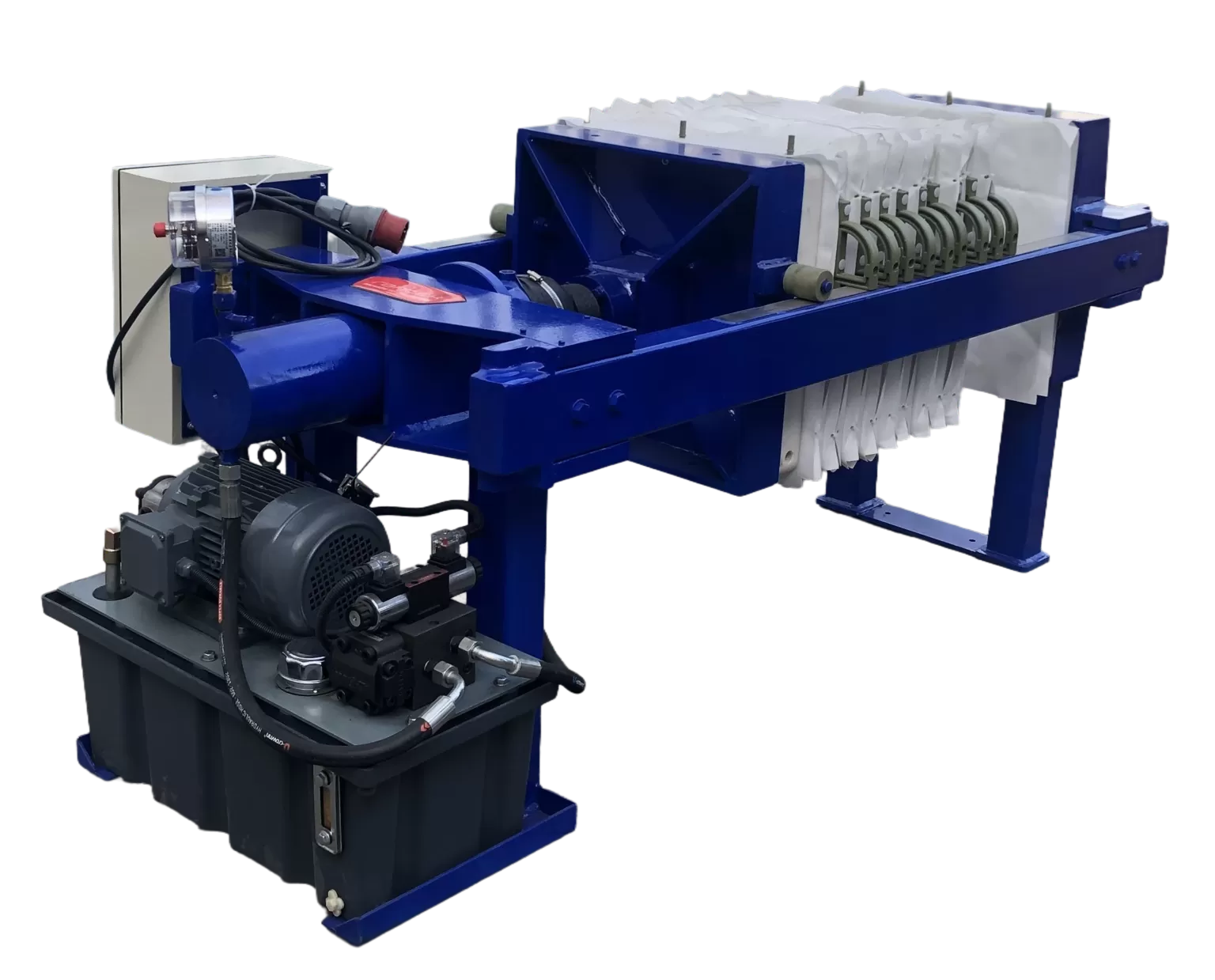

RAM3585 press filter system is a reliable solution for efficient solid-liquid separation, ideal for applications in mining, chemical processing, and wastewater treatment. It operates at 600 kPa pressure, producing low-moisture filter cakes with excellent dewatering performance. Designed with polypropylene-coated components and a 2.2 kW motor, it ensures durability, energy efficiency, and resistance to corrosive materials. Its compact, modular design allows for easy installation, maintenance, and customization, making it a versatile choice for diverse industrial needs.

  • Filter Surface Area: Min. 4 m²
  • Plate Size: 500 x 500 mm with ±5% tolerance on both sides
  • Cake Thickness: Min. 30 mm
  • Number of Plates: Min. 7 pieces
  • Pressure: ≤ 0.6 MPa
  • Required Power: Min. 2 kW
  • Pump Type: Diaphragm Pump included
  • Coating Material: Polypropylene (PP) to prevent corrosion
  • Valves and Pipes: Made of Polypropylene (PP)

Before and After Treatment

You can compare the changes and quality achieved after the treatment side by side.

After
Before
