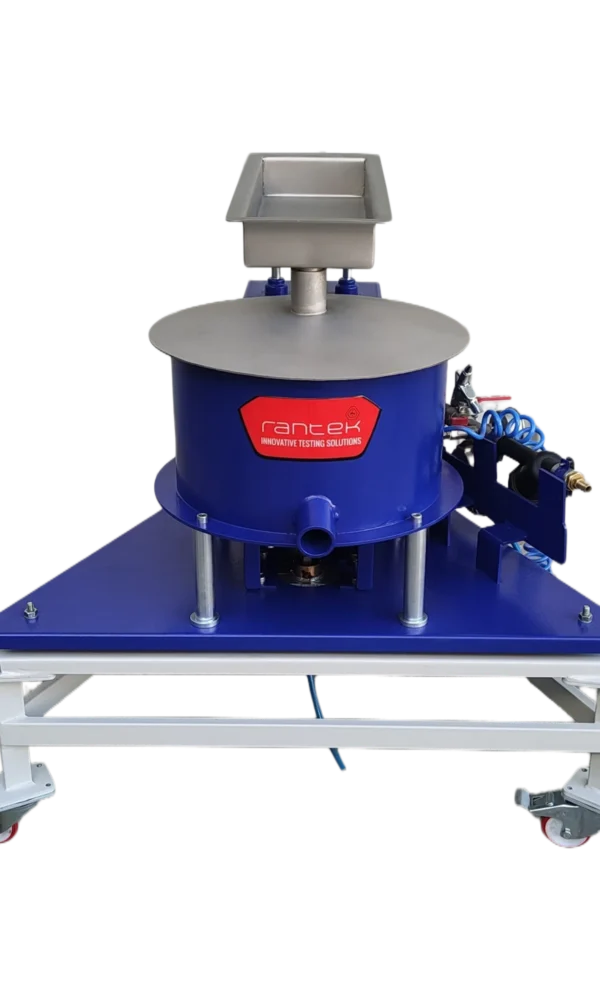

RAM6240 GOLD CONCENTRATOR

Solids Feeding Capacity: 0-240 Kg/hour.
Maximum Volumetric Efficiency: 15 - 120 LPM
Feed Density: Up to 75 (%).
Feed To Size: max. 4.5 mm
Feed To Size: Recommended 1.5 to 1.7 mm
Matrix Cone Option: Polyethylene
Target Recovery Particle Size: Pilot / Laboratory Type Review the product

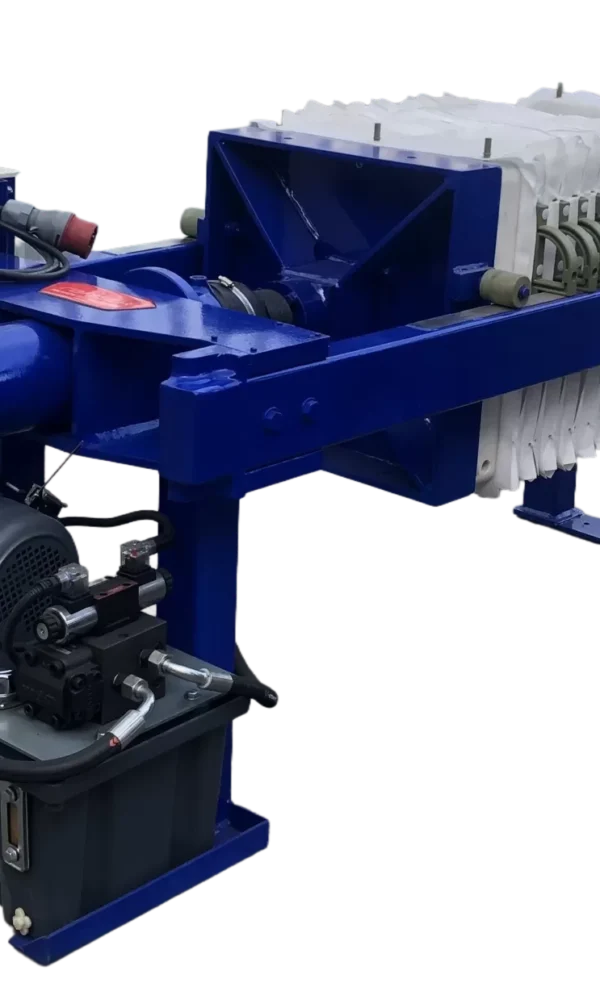

RAM3585 press filter system

Filter surface area: 4 m²
Plate size: 500 x 500 mm
Cake thickness: 30 mm
Number of plates: 7 pieces
Pressure: ≤ 0.6 MPa Review the product

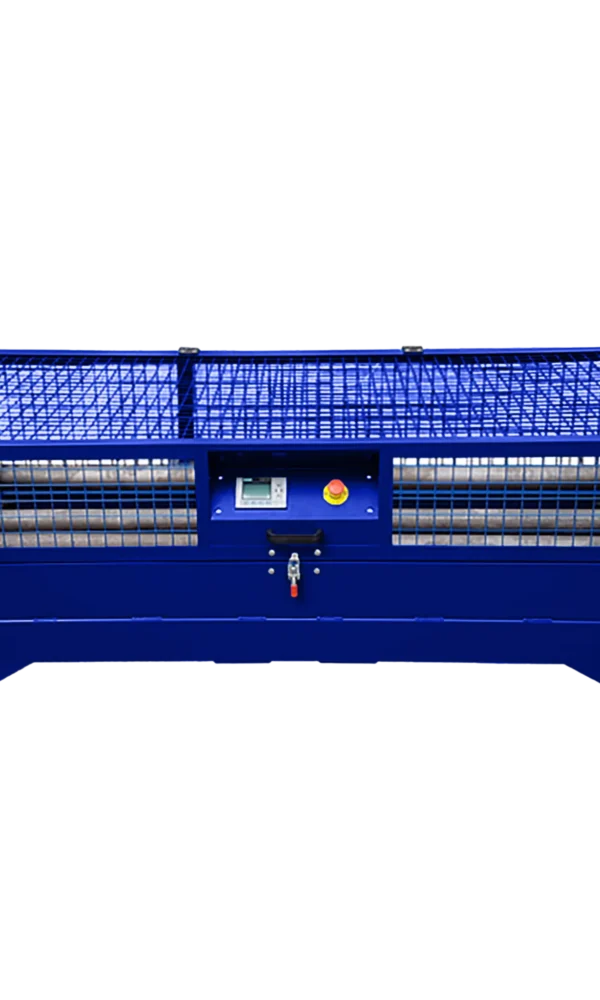

RAM810 bottle roller pilot

Distance Between Rollers: 6 inch (150 mm) from Center to Center
Min diameter bottle: 120mm
Max diameter bottle: 370mm
Speed Setting: 35 – 100 rpm Review the product

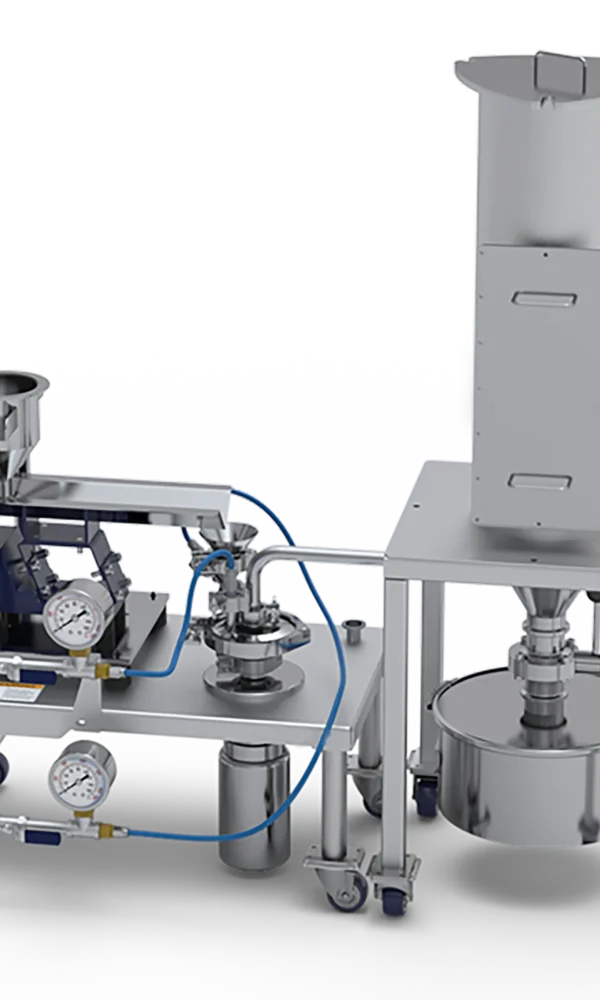

RAM770 spiral jet mill

Feed Size: 0 TO 25 MM Achievable Output Fineness: 250 µm TO 0.2 µm Throughput Capacity: 5 KG/HR TO 3000 KG/HR Review the product

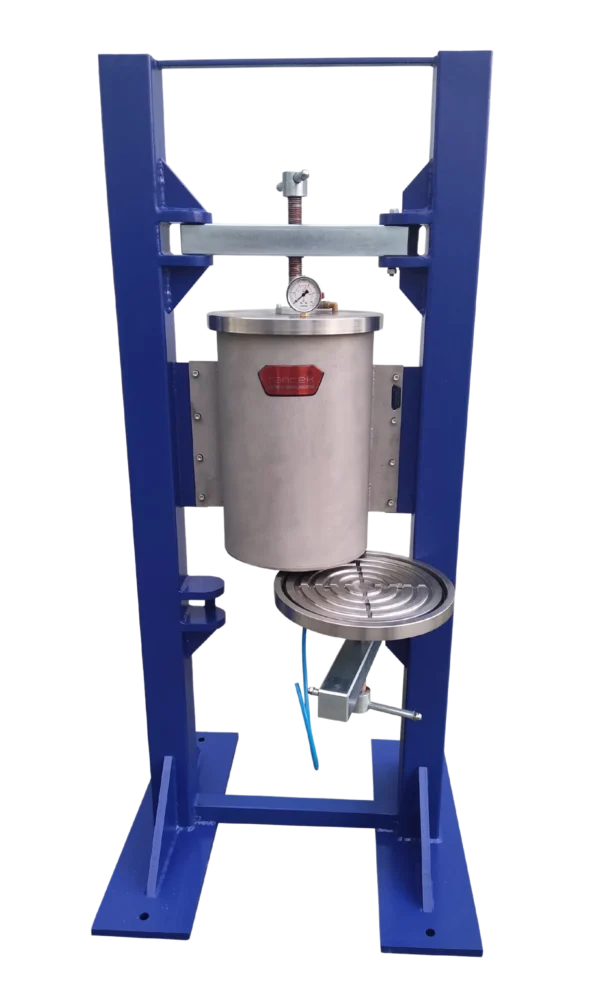

RAM3735S pressure filter device

Max. Pressure: 10 bar. Chamber diameter: 320±5 mm. Chamber height: 500±5 mm. Chamber material: AISI316L S.S. Frame material: Heat Painted Steel. Chamber volume: 40 liters. Review the product

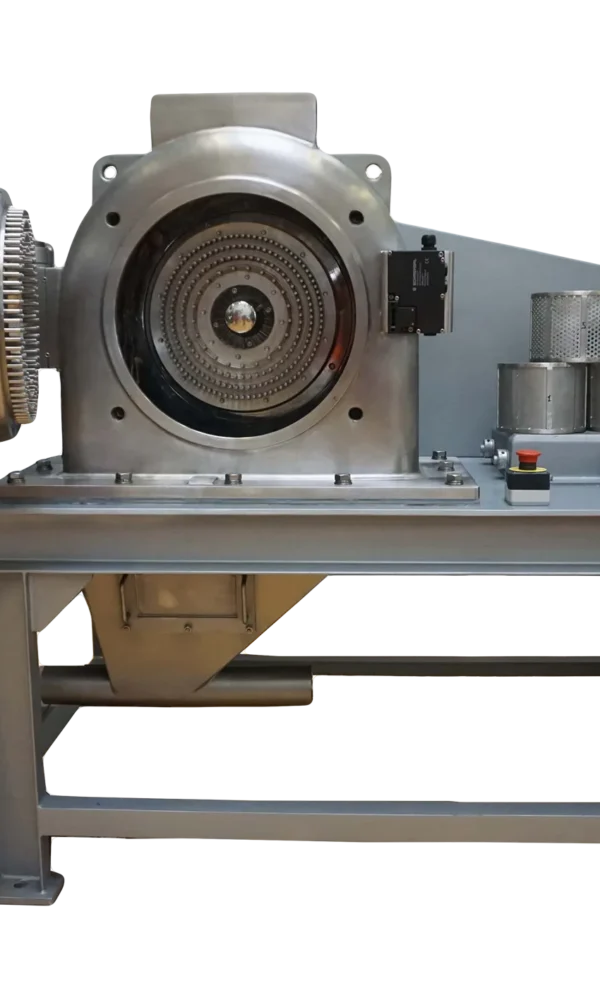

RAM710 fine impact mill 315

Diameter of Mill : 315 mm
Power : 18.5 kwa
Theorical Flow in M³/h : 1000 Review the product

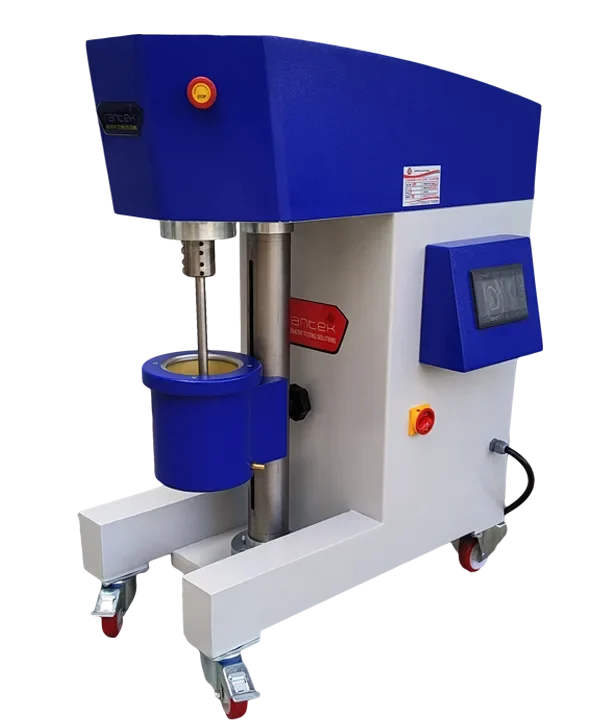

RAM815 attritor stirred mill

Volume: 500 cc to 10000 ml
Material feed size: ≤5 mm
Output granularity: ≤1 μm
rotation speed: 50–1400 rpm Review the product

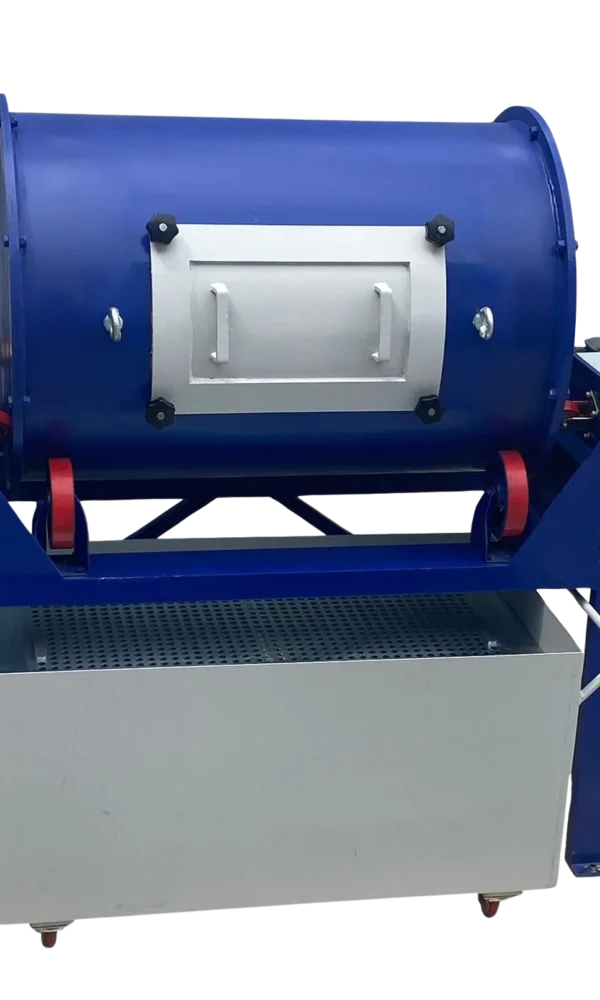

RAM1370 pilot scale ball mill 600 l

Adjustable speed: 7-33 rpm
Grinding mill volume: 600 Liters
Grinder mill diameter: 800 mm
Grinder mill length: 1200 mm Review the product

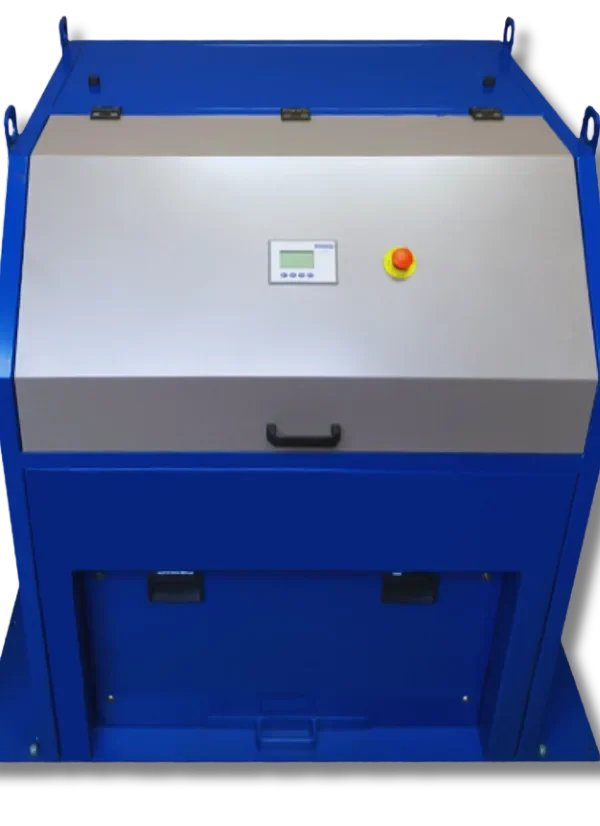

RAM85 pulverizer disc/ring mill 5000

Same as mod. RAM80, but additionally: Optimum filling for RAM85: ~3500 cc sample Review the product

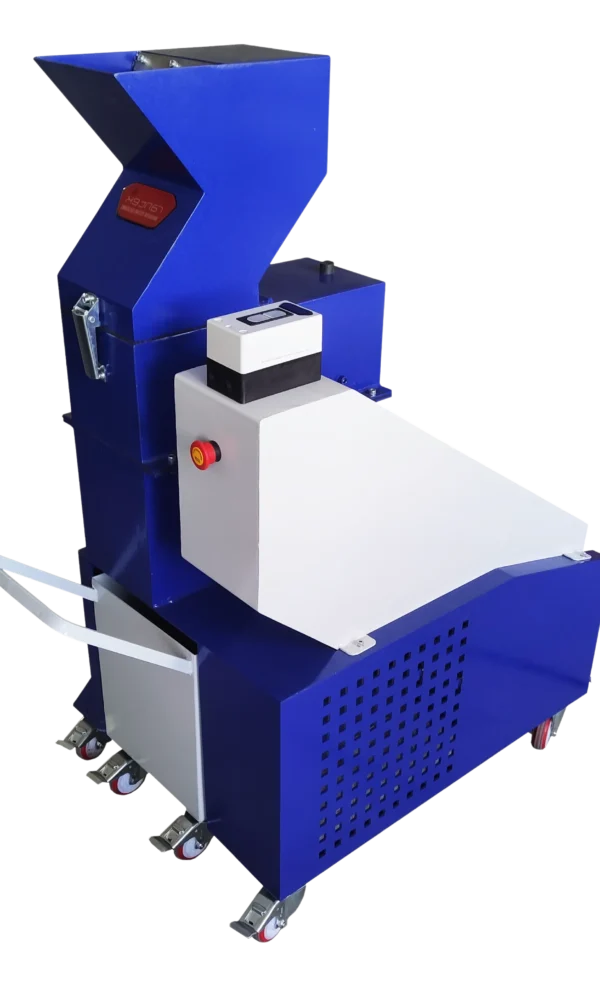

RAM335 hammer mill crusher

Feeding size: < 30 mm - < 100 mm
Final fineness: < 1 mm - < 3 mm
Capacity: 250 kg/hr - 2500 kg/hr
Electrical supply data: 380 V, 50 Hz, 5 kW/ Review the product

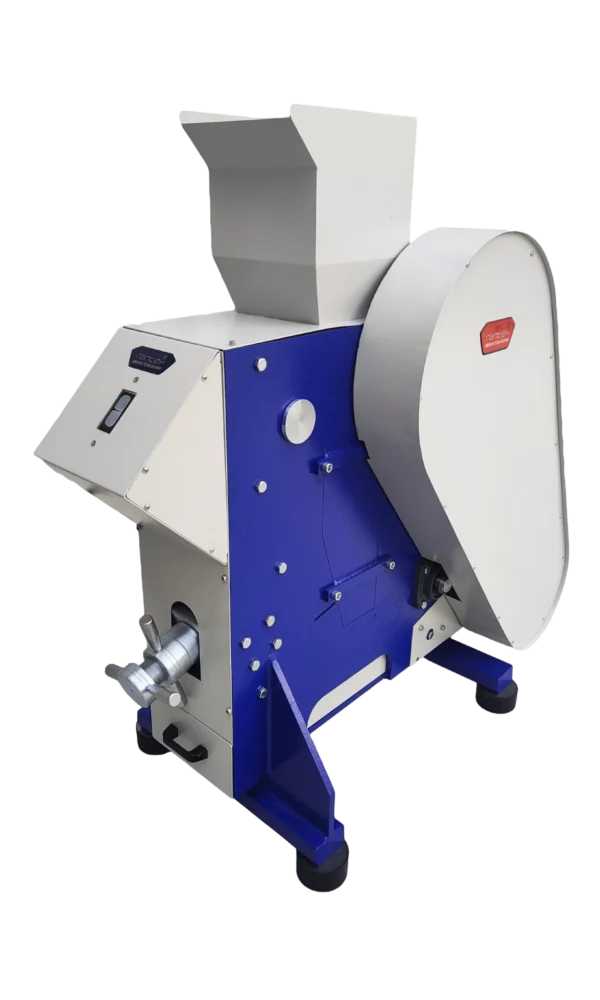

RAM35 jaw crusher large

Material feed size: < 130 x 200 mm
Final fineness: < 5 mm
Final thickness: < 1 mm
Throughput: 600 kg/h Jaw plate size: 200 x 400 mm
Jaw aperture adjustment: 1 - 35 mm Review the product

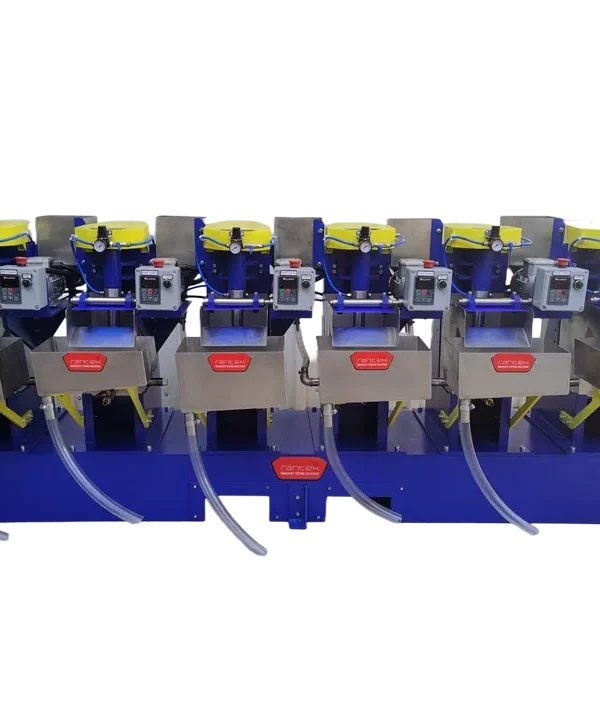

RAM6180 lab flotation system

Capacity: 40-50 kg/h
Cell volume: 10 L
Cell dimensions: 200 × 200 mm ± 10% tolerance
Impeller speed: 300-1500 rpm Review the product

RAM5245 vibro screen separator 700

Advanced liquid solid separator for the removal of solids from liquid slurries. Review the product
